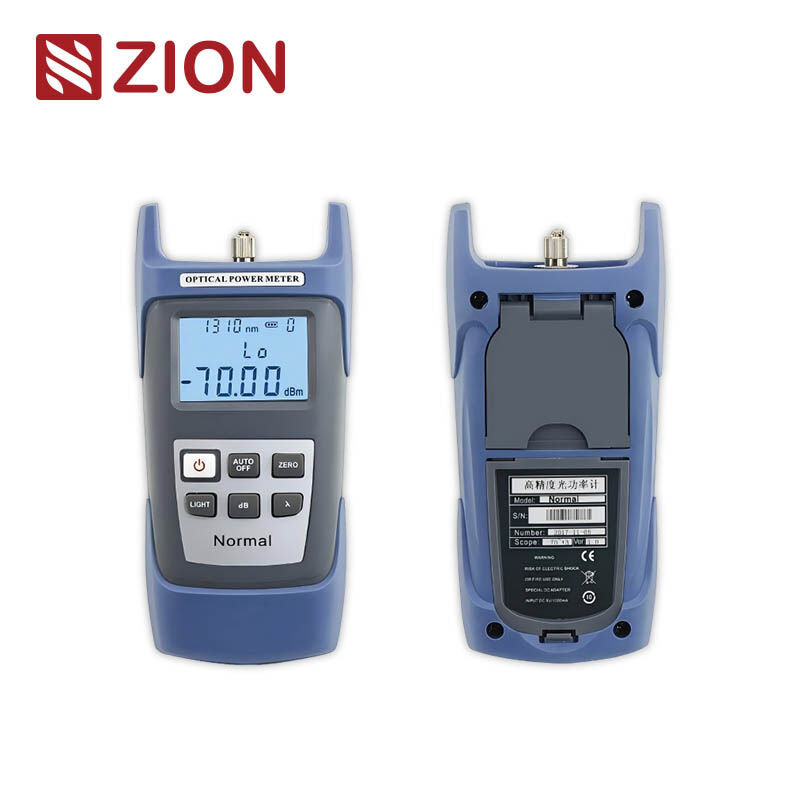

Portable Fiber Optic Power Meter with Wide-Range Measurement and High-Accuracy for FTTH, Telecom & Data Center

Informação Básica

Lugar de origem:	Ningbo China
Marca:	OEM
Número do modelo:	Kit de ferramentas de fibra óptica

Quantidade de ordem mínima:	10 caixas
Detalhes da embalagem:	1pcs/caixa
Tempo de entrega:	5-25 dias

Melhor preço contacto

■ Fiber Optic Power Meter

Wide-Range, High-Accuracy Optical Power Measurement

The portable fiber optic power meter is a compact, rugged, and highly accurate handheld instrument, designed for installation, operation, and maintenance of optical fiber networks.
It supports simultaneous display of linear (mW) and logarithmic (dBm) values, ensuring fast and intuitive measurements in the field.

■ Technical Specifications

Parameter	Specification
Wavelength Range	800 – 1700 nm
Detector Type	InGaAs
Measurement Range	–70 dBm to +3 dBm
Measurement Uncertainty	±0.2 dB (±5%)
Calibrated Wavelengths	850 / 1300 / 1310 / 1490 / 1550 / 1625 nm
Resolution	Linear: 0.1% / Logarithmic: 0.01 dBm
Optical Connector	FC / Universal 2.5 mm adapter
Power Supply	3 × AA 1.5 V Alkaline Batteries
Battery Life	Up to 240 hours
Operating Temperature	–10 °C to +60 °C
Storage Temperature	–25 °C to +70 °C
Relative Humidity	0–95% (Non-condensing)
Dimensions	190 × 100 × 48 mm
Weight	600 g
